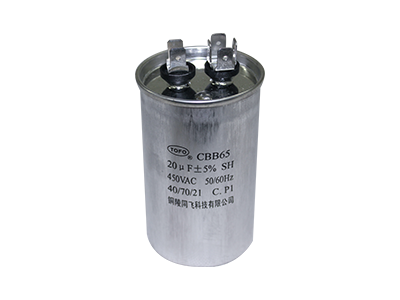

AC motor capacitor ---CBB65

 Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
 Self-healing property
 High stability and reliability
 Safer with Anti-explosion design

Quantity:
1.  Specifications

 Reference standards  GB/T 3667.1 IEC60252-1
 Climatic category 40 / 70 / 2140 / 85 / 21
 Class of operation Class B (10000h)    Class C (3000h)
 Class of safety protection P2/P1
 Voltage range    200500VAC
 Capacitance range 2100μF
 Capacitance tolerance     ± 5% ± 10%± 15%
 Dissipation factor 20 x10-4 (100Hz,20°C)
Test voltage terminal to terminal  UTT   2 Un for 2 seconds
Test voltage terminal to case UTC  (2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds
 Insulation Resistance 3000s (100Hz20°C1min)

2.  Dimensions(mm)

NO. Specifications Terminal Size
1 CBB65-450VAC 5μF ~9μF 2*4 or 2*2 pin φ40*60
2 CBB65-450VAC-10μF 2*4 or 2*2 pin φ40*60
3 CBB65-450VAC-12.5μF 2*4 or 2*2 pin φ40*70
4 CBB65-450VAC-15μF 2*4 or 2*2 pin φ45*70
5 CBB65-450VAC-20μF 2*4 or 2*2 pin φ50*75
6 CBB65-450VAC-25μF 2*4 or 2*2 pin φ50*85
7 CBB65-450VAC-30μF 2*4 or 2*2 pin φ50*100
8 CBB65-450VAC-35μF 2*4 or 2*2 pin φ50*100
9 CBB65-450VAC-40μF 2*4 or 2*2 pin φ50*100
10 CBB65-450VAC-45μF 2*4 or 2*2 pin φ50*100
11 CBB65-450VAC-50μF 2*4 or 2*2 pin φ50*125
12 CBB65-450VAC-55μF 2*4 or 2*2 pin φ50*125
13 CBB65-450VAC-60μF 2*4 or 2*2 pin φ50*125
14 CBB65-450VAC-65μF 2*4 or 2*2 pin φ55*125
15 CBB65-450VAC-70μF 2*4 or 2*2 pin φ55*125
16 CBB65-450VAC-80μF 2*4 or 2*2 pin φ60*125
17 CBB65-450VAC-90μF 2*4 or 2*2 pin φ60*125
18 CBB65-450VAC-100μF 2*4 or 2*2 pin φ63.5*125

Note: Other specifications and sizeterminal outside table are negotiable.
