Plastic Parts

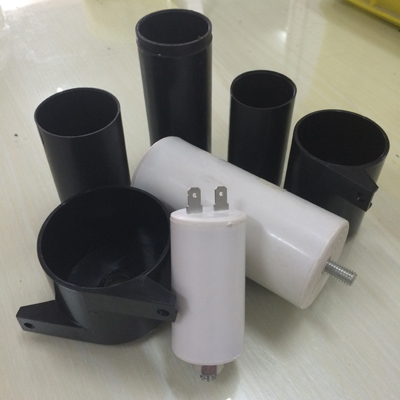

This series of products are used for metallized film capacitor, capacitor for washing machine, compressor capacitor, bsorbing and filtering capacitor . Working temperature of the product is in the range of - 40 ℃ ~ 85 ℃ generally, and up to 105 ℃ for particular demand. Fire-retardant property is Class FV-0 GB4609-84. And, it can also meet fire-retardant standard or glow wire requirements of UL according to customers' needs.

Quantity:
Specifications:

1、Square plastic shell
序号
NO.
规格型号(mm
Type(mm)
备注
Remark
1 37×13×23 底部带安装孔
With mounting hole atthe bottom
2 37×14×25 底部带安装孔
With mounting hole atthe bottom
3 37×16×28 底部带安装孔
With mounting hole atthe bottom
4 37×18×28 底部带安装孔
With mounting hole atthe bottom
5 47×18×29 底部带安装孔
With mounting hole atthe bottom
6 47×18×34 底部带安装孔
With mounting hole atthe bottom
7 47×22×34 底部带安装孔
With mounting hole atthe bottom
8 48×26×38 底部带安装孔
With mounting hole atthe bottom
9 58×26×44 底部带安装孔
With mounting hole atthe bottom
10 58×35×49 底部带安装孔
With mounting hole atthe bottom
11 46×18×34 无耳
No earrng
12 46×34×36 无耳
No earrng
13 46×50×50 无耳
No earrng
14 75×50×44 有两个安装孔
With two mounting holes
15 74×46×49 有两个安装孔
With two mounting holes
16 60×50×55 带U型双耳
With 2U-shaped earrngs

2、Circular plastic shell
序号
NO.
规格型号(mm
Type(mm)
备注
Remark
1 φ26×52 带螺杆配盖板
Bolt with cover
2 φ28.5×55 带螺杆配盖板
Bolt with cover
3 φ30×52 带螺杆配盖板
Bolt with cover
4 φ34×62 带螺杆配盖板
Bolt with cover
5 φ35×67 带螺杆配盖板
Bolt with cover
6 φ37×73 带螺杆配盖板
Bolt with cover
7 φ40×70 带螺杆配盖板
Bolt with cover
8 φ40×97 带螺杆配盖板
Bolt with cover
9 φ42×50 带螺杆配盖板
Bolt with cover
10 φ42×60 带螺杆配盖板
Bolt with cover
11 φ42×80 带螺杆配盖板
Bolt with cover
12 φ42×90 带螺杆配盖板
Bolt with cover
13 φ42×95 带螺杆配盖板
Bolt with cover
14 φ45×90 带螺杆配盖板
Bolt with cover
15 φ50×87 带螺杆配盖板
Bolt with cover
16 φ50×90 带螺杆配盖板
Bolt with cover
17 φ50×95 带螺杆配盖板
Bolt with cover
18 φ50×100 带螺杆配盖板
Bolt with cover
19 φ50×110 带螺杆配盖板
Bolt with cover
20 φ50×115 带螺杆配盖板
Bolt with cover
21 φ50×60 有两个安装孔
With two mounting holes
22 φ63×49 有两个安装孔
With two mounting holes
23 φ76×49 有两个安装孔
With two mounting holes

3、Mandrel
Mandrel Diameter:φ9mm
Mandrel Lenfth:32mm~117mm
